TC TYPE Sigillo di olio

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature

Tutte le categorie

Sigilli di olio per riduttori di ingranaggi

Sottili di olio per servomotori

Sigillo d'olio personalizzato

Contattici

Miss. Elen

xiangteoilseal@163.com

18131923768

Contatto ora

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature

Marchio:	CCO
Numero di modello:	1
MOQ:	10 pezzi
prezzo:	Negoziabile
Dettagli dell' imballaggio:	Imballaggio standard per l'esportazione
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Cina

Campione:

SÌ

Tipo di labbro:

DOPPIO LABBRO

Misurare:

Misura standard

Intervallo di temperatura:

-40 ° C a +120 ° C.

Caratteristiche:

Doppio labbro, custodia metallica, carica molla

Forma:

Girare

Compatibilità:

Ampia gamma di fluidi e gas

Tipo di sigillo:

Capacità di alimentazione:

100000pcs/ mese

Evidenziare:

TC TYPE oil seal high temperature

TC TYPE oil seal consistent performance

TC TYPE oil seal engine

Descrizione di prodotto

1. Product Introduction

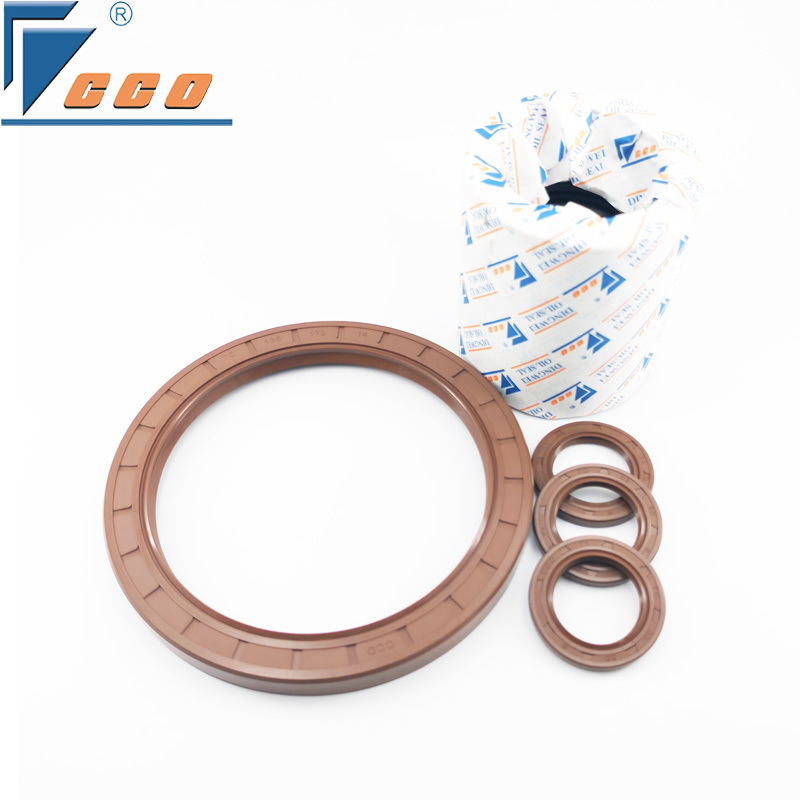

TC oil seal is a double-lip, spring-loaded, fully rubber-covered radial shaft seal (compliant with ISO 6194 / GB/T 13871). It is the most widely used rotary sealing component in the global market, responsible for retaining lubricating oil/grease and preventing the intrusion of dust, water, mud and other contaminants. This NBR-based standard TC seal is designed for medium working conditions, with excellent cost-performance, stable quality and wide compatibility, suitable for mass OEM supply and global aftermarket replacement.

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 0

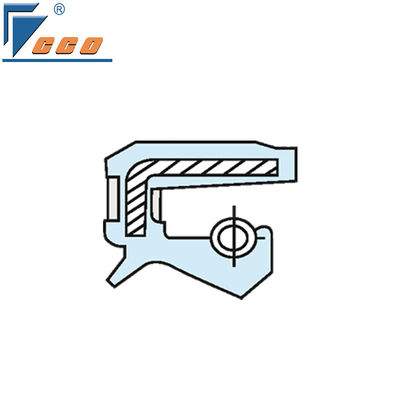

2. Structural Features

Full rubber-coated metal skeleton: High-strength carbon steel insert, fully wrapped by rubber, no metal exposure, anti-corrosion, stable outer diameter interference fit, no damage to the housing bore.

Double lip design: Main sealing lip + auxiliary dust lip, forming a labyrinth effect, effectively isolating internal oil and external dirt.
Self-tightening garter spring: Provides continuous radial pressure, adapts to shaft eccentricity and wear, maintains long-term sealing performance.
Precision lip geometry: Optimized lip angle to form a stable micro oil film, reduce friction heat and wear, extend service life.
Standard installation size: Fully compatible with international standard bore and shaft fits (H7/h6), easy press-fit installation.

3. Material Parameter Table

Item	Specification
Rubber Material	NBR (Acrylonitrile-Butadiene Rubber)
Hardness	70±5 Shore A
Operating Temperature	-40°C ~ +120°C (continuous)
Max. Surface Speed	≤15 m/s
Working Pressure	Dynamic ≤0.03 MPa
Shaft Fit Roughness	Ra 0.2~0.4 μm
Compatible Media	Mineral oil, engine oil, gear oil, grease, diesel
Compression Set	≤20% (120°C × 22h)

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 2

4. Performance Advantages

Cost-effective & globally recognized: Low comprehensive cost, stable supply chain, suitable for large-scale procurement in Europe, America, Southeast Asia, Middle East and Africa.
Good oil resistance: Stable performance in common mineral oil systems, no swelling, no hardening, no cracking.
Strong anti-pollution ability: Double lip structure effectively blocks dust and water, suitable for outdoor machinery and vehicles.
Low friction & low heat: Stable oil film reduces heat generation, avoids early failure caused by high temperature.
Wide dimensional range: Shaft diameter φ6~φ200mm, width 4~15mm, can meet most general sealing needs.

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 3

5. Application Fields

Automotive: Crankshaft front/rear seal, camshaft seal, gearbox input/output shaft seal, wheel hub, differential.
General industrial: Electric motor, fan, water pump, air blower, agricultural machinery, small hydraulic equipment.
Aftermarket: Universal replacement parts for light and medium-duty equipment worldwide.

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 4
